Used Toyota Towel Loom

TOYOTA T810 staubli dobby towel loom ,2sets 250cm and 2 sets280cm ,in excellent running condition ,can get Compressor and dryer for free.

Year :2015

Width :250cm/280cm

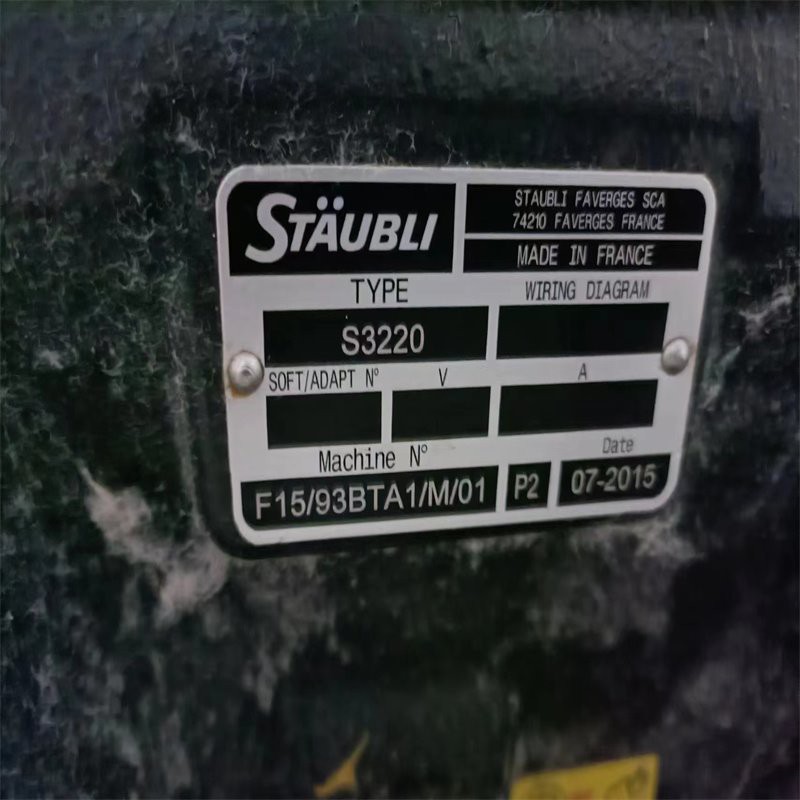

Dobby : staubli S3220 dobby

Selector :.6 nozzles

Feeder :6 feeders per loom

Electrnoic take off :Yes

Electrnoic Let up :Yes

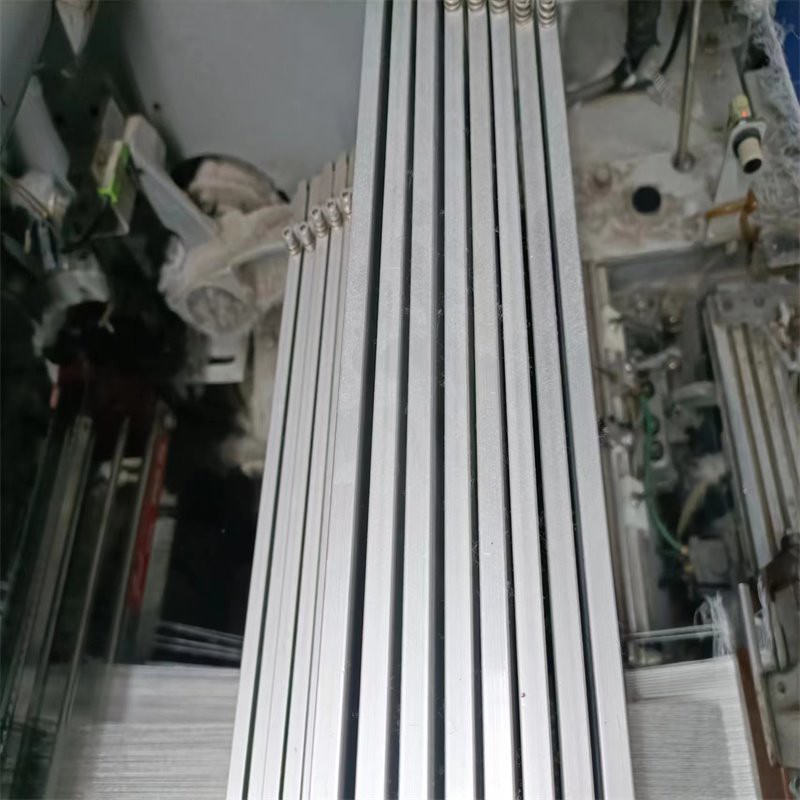

Heald Frame :16 pcs per loom

Warping Beam :2 pcs per loom

Cloth Roller :1 pcs per loom

Dropper :.as on each loom

Heald :as on each loom

Condition : excellent running condition

Four highlights of Toyota jat810 towel machine

1. Solid main structure (drive/side wall panel/beating-up)

Toyota adopts one-piece side wall panels, very thick wall panels for the upper beam, and full-width balance blocks to form a solid structure with high strength, which can reduce machine vibration and facilitate high-speed and stable operation. Toyota's towel machine adopts multi-section beating-up of 6links connecting rod. By extending the weft insertion time, the phenomenon of weft yarn breakage is reduced, and the running state is greatly improved.

2.Loop lifting device

The Toyota towel machine has adopted the terry loop device since its development in 1996. The servo motor is produced by Toshiba, and the reducer is produced by Toyota itself. Because it has always used Toshiba's motor, it has been continuously improved, and it is now the fourth generation. High performance motor. Toyota used a continuously improved high-performance looping device, and exhibited an ultra-high-speed operation of 273 rpm at the Shanghai Exhibition.

3. Let-off/tension control system

Due to the technical cooperation between Toyota and Sulzer, the Toyota towel machine adopts the best warp tension following torsion bar method, so as to achieve high-quality terry and satin. On the towel machine, if the important tension cannot be accurately controlled, there may be less loops and abnormal loop lengths.

4:Excellent energy saving:

The weft insertion device is optimally designed on the JAT810. This Toyota's original weft insertion system, which incorporates many new technologies, The air pressure and air consumption are greatly reduced.
