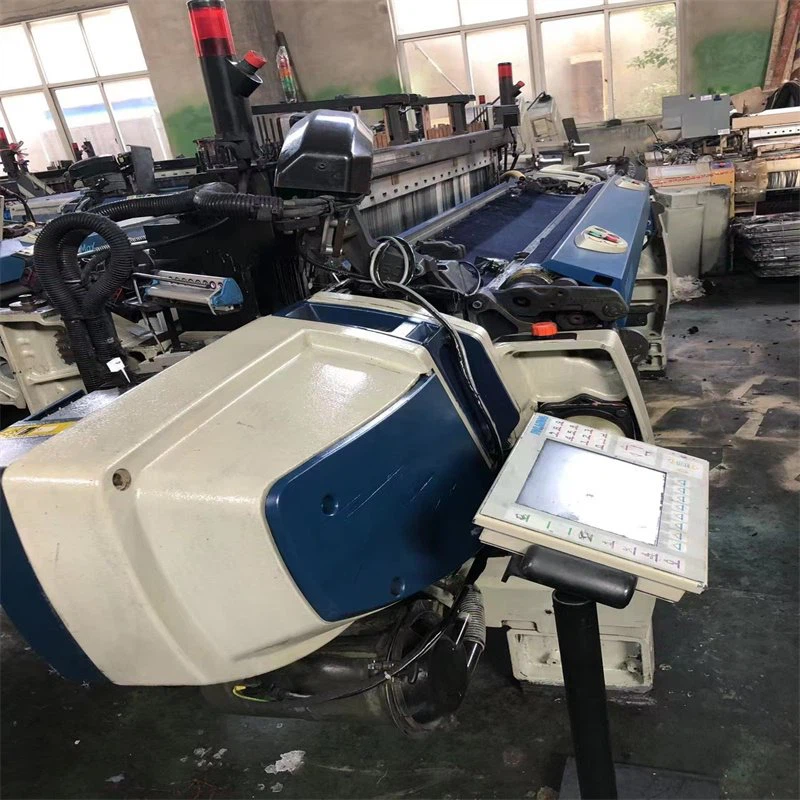

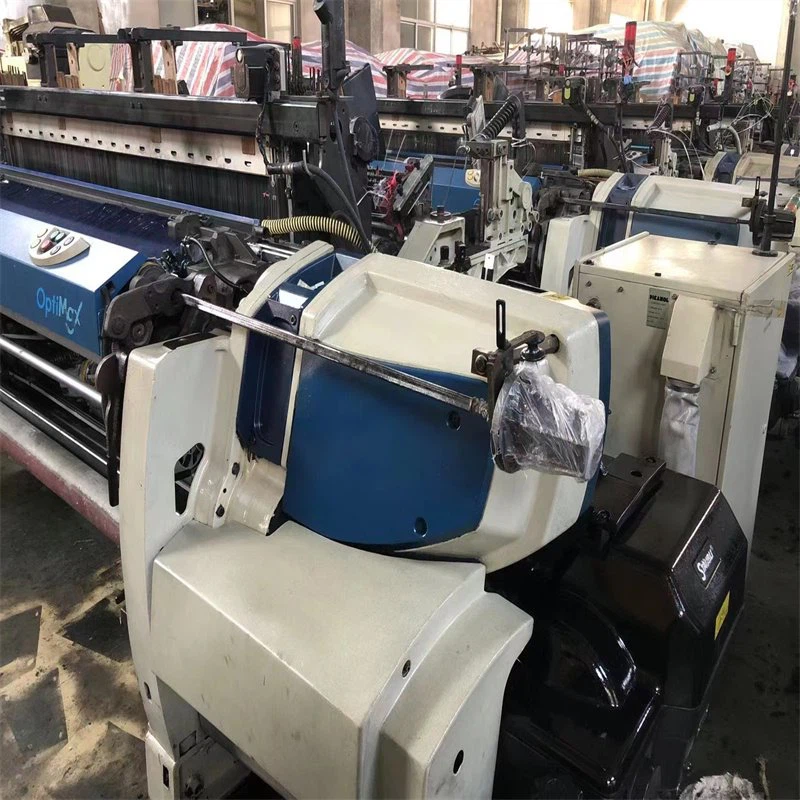

Used Picanol Optimax Rapier Loom

Second hand Picanol Optimax rapier looms available for sale

Quantity :52sets

Year :2010-2015

Width :190cm/230cm

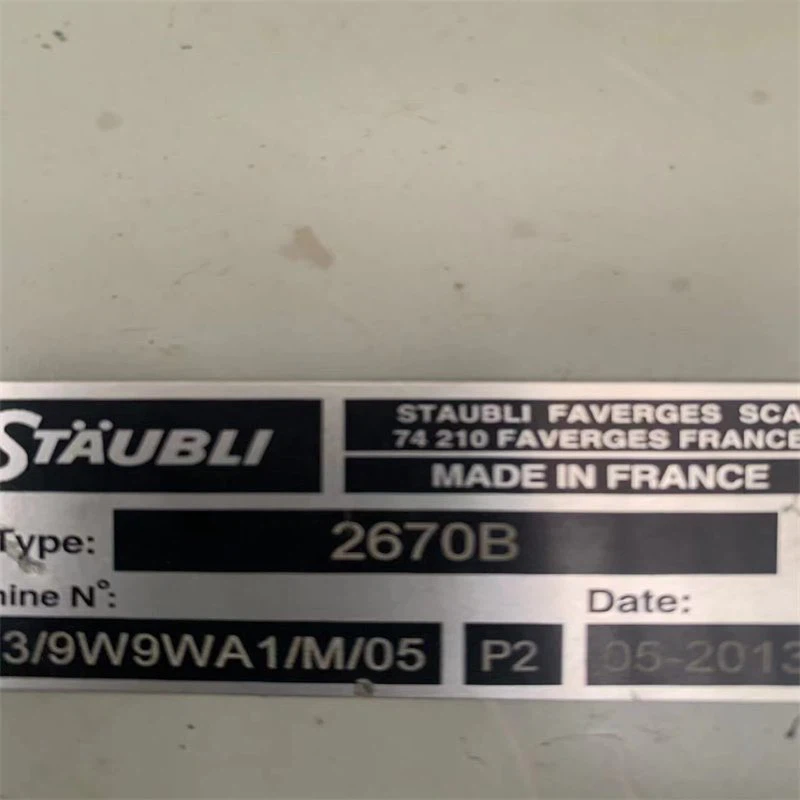

Shedding :16 shaft staubli 2670B/2622B/S3020 dobby

Selector :.4 -6 capacity

Feeder :4-6 feedes per loom

Electrnoic take off :Yes

Electrnoic Let up :Yes

Heald Frame : 10 pcs per loom

Warping Beam :1 pcs per loom ( Dia 800mm)

Cloth Roller :1 pcs each loom

Dropper :As on each loom

Ten advantages of Picanol Optimax rapier weaving machine:

(1) The main drive adopts the standard configuration of Somo motor with high efficiency, energy saving and oil cooling.

(2) The whole process of weft insertion is controlled, and the weft yarn can be adjusted to the best state.

(3) Depending on the rapier operation, the guide hook system (GC) can be used for the fabric, and the guide hook system (FF) can also be used.

(4) Quick Step modular weft selector with up to 12-color weft selection and electronic stepper motor.

(5) The modular OptiLeno selvage device is adopted, and the front or rear heddle leno fabric can be optionally selected.

(6) Independent fancy beams can be configured.

(7) Positive electronic weft rapier releaser (ERGO), which can control the length of the yarn tail visually.

(8) Each weft feeder is equipped with a programmable weft yarn tensioner (PEL-TEC) controlled by a microcomputer to ensure the best tension of the weft yarn during the weft insertion process.

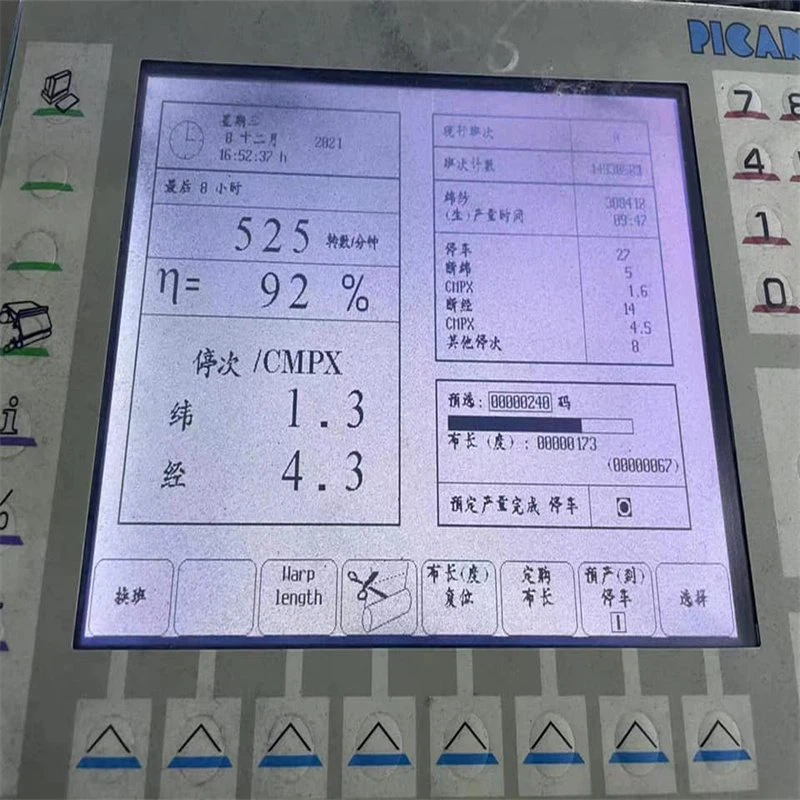

(9) The control system is more intelligent. In addition to the keyboard display screen, an interactive touch screen can also be used. The advantage is that it can store several types of set values. The original S-band USB memory, handheld computer or key label interface can communicate wirelessly, communicate with the central computer system in two directions, and can transmit production data through local networks and the Internet.

(10) QSC quick variety replacement device can be configured.
