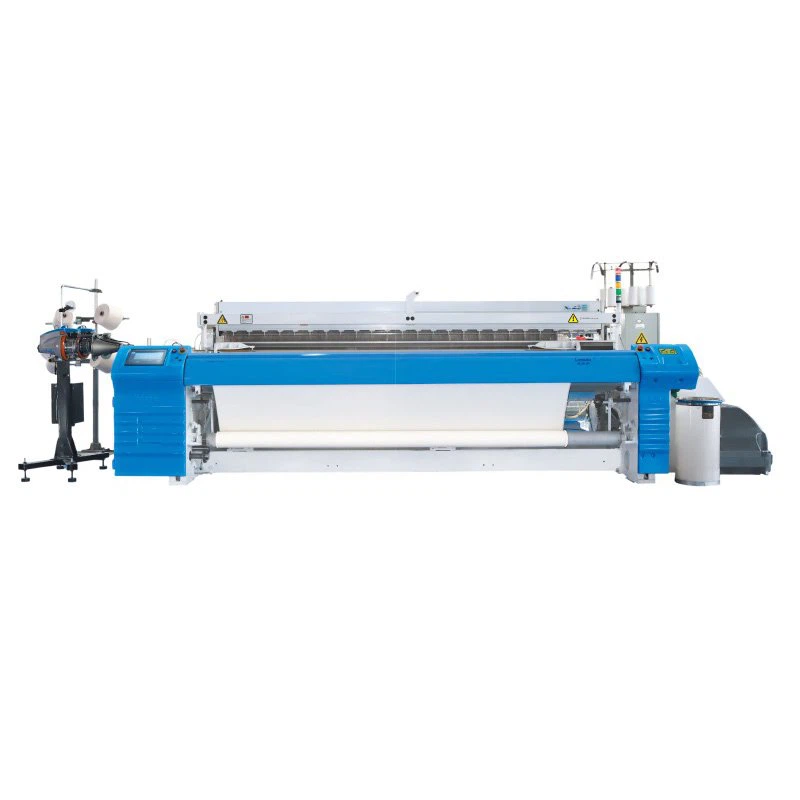

Dobby Air Jet Towel Loom
Qingdao Lenado Intelligent Equipment Co., Ltd. is located in huangdao District, Qingdao City, Shandong Province. With a production base of over 80,000 square meters, research and development, sales and service are one-stop at present. The company has a production workshop of 40,000 square meters with a total investment of over 100 million yuan, and has a highly educated management and R&D team.
Our machine can be made meeting to customer’s requirement. Please keep believing in us, we will offer high quality machine and excellent after-sale service all the time.
Our machine can be made meeting to customer’s requirement. Please keep believing in us, we will offer high quality machine and excellent after-sale service all the time.
1 | Reed Space ( cm ) | 190, 210, 230, 260, 280, 300, 360, 380 |
2 | Speed | 300 - 500 RPM ( designed by material and width ) |
3 | Raising Height | 0 - 12 mm |
4 | Yarn Woven | Short fiber Nm4 - Nm200, long fiber tex 1.7 - tex 380 |
5 | Weaving Adaptability | All kinds of terry towel productions |
6 | Down Warp let-off | Weaving beam diameter Φ800 mm |
7 | Up Warp let-off | Weaving beam diameter Φ1000 mm |
8 | Let-off Method | Electronic let-off |
9 | Take-up Method | Electronic take-up The machine can be installed in large volume,maximum diameter of 1500 mm |
10 | Drive | Super starter motor; |
11 | Shedding | Dobby: shaft up to 20 |
13 | Raising | Special electronic raising device and patents designing |
16 | Weft Insertion | Main and sub-nozzles combined system, auxiliary main nozzle, profiled reed |
